ECM-70 G | Heavy Duty Gripper Matting

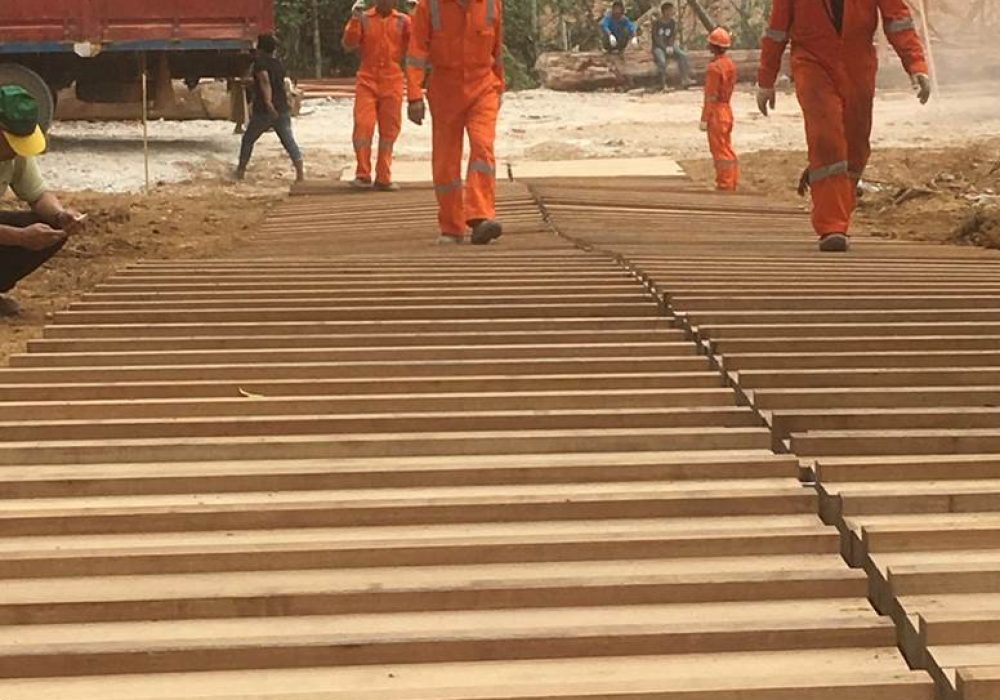

The ECM-70 G is a high-performance modular, eco-friendly ground protection gripper mat designed to support heavy vehicle access and temporary access roads across the civil construction, energy, mining and construction industries. A unique ground protection mat delivering unrivalled grip on steep inclines in muddy wet conditions. The most difficult environment for any industry.
ECM-70 G: The unrivalled matting option for inclines. Delivers a cost-effective durable solution to keep your equipment moving in all weather.

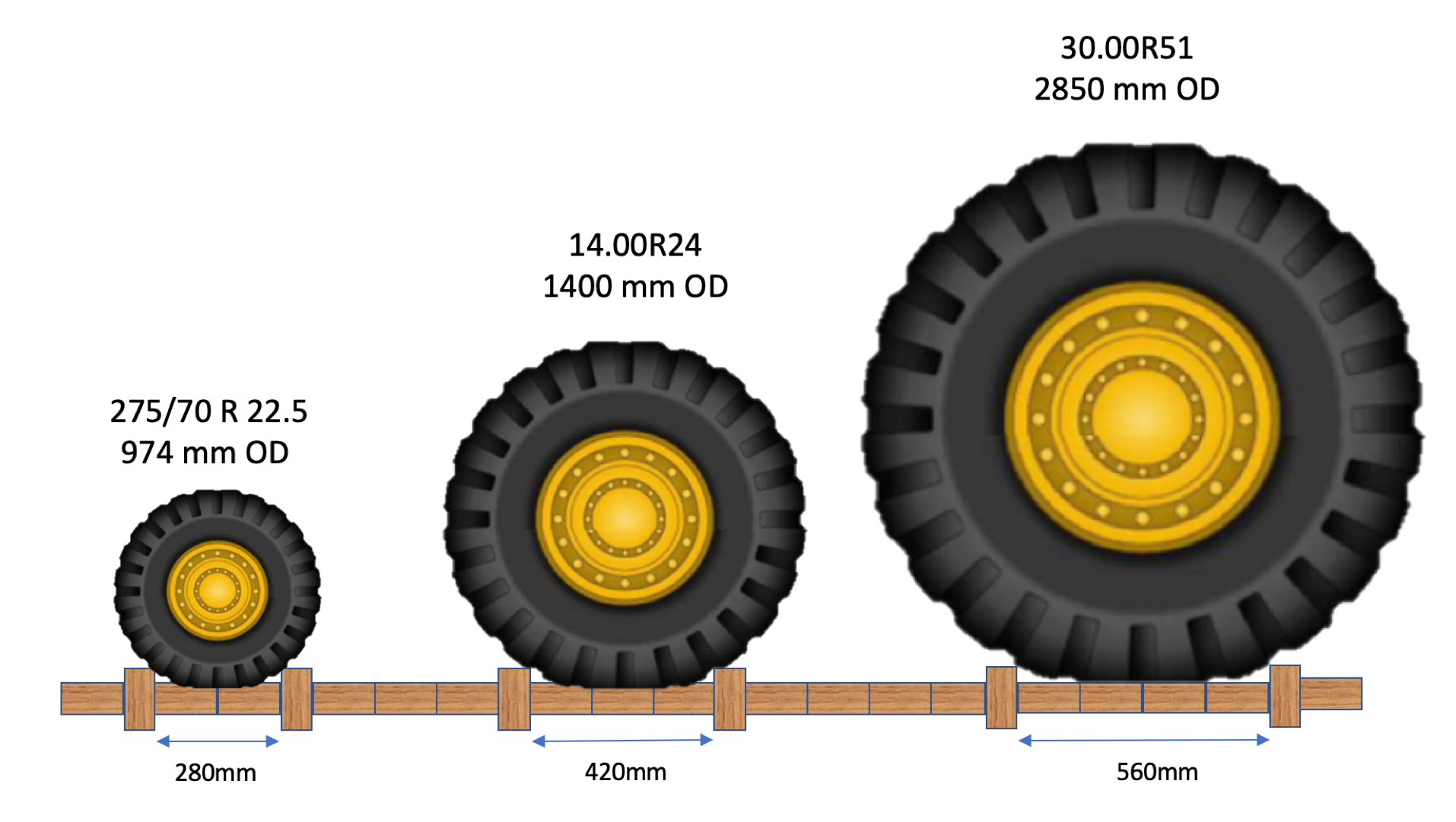

Built using our proprietary Flex Weave bamboo technology, the ECM-70 G offers unmatched strength and exceptional operational efficiency for all equipment. The grip tread can be custom designed to meet your wheel sizes. Challenge us to meet your requirements.
Specifications
|
Description |
ECM-70 G |
ECM Advantage |
|---|---|---|
|
Actual Size |
2.824m x 1.860m x 70mm |
No Comparable product can match the ECM-70 G due to: Specialized Gripper Traction Design, Modularity, Quick Connectors, Industrial Strength, Sustainability. |
|
Useable Area |
5.25m2 (56.5 sqft) |
|
|
Weight |
545 kgs (1,200 lbs) |
|
|
Strength |
1536 psi (10,594 kn/m2) |
|
|
Thickness |
70mm (2.76inches) |
|
|
Mats per 20 ft container |
40 mats |
|
|
Coverage / 20ft container |
157.5m2 (1,695 sqft) |
|
|
Connectors |
4 steel to steel |
|
|
Life |
15 years |
|
|
Repairable on site |
Yes |
|
|
Buoyancy |
Does not Float |
|
|
Fire rating |
Class A ASTM E84 |
How the ECM-70 G Can Boost Your Performance
Operational & Cost Efficiency
The ECM-70 G is engineered to reduce project costs via logistics, reliability and rapid installation.
- Reduce logistics costs: load more mats per truck, increase usable coverage per container vs HDPE
- Rapid Connection: patented 4-way steel to steel quick-lock connectors reduce install time
- Streamlined Deployment: Dedicated lifting points, NO DUNNAGE REQUIRED between mats.
- Repairable On-site: Modular design replace damaged pieces without full mat removal
- High load capacity: 10,611 kN/m² ensures surface stability for heavy equipment
Sustainable Matting
The ECM-70 G is manufactured from Flex Weave Bamboo, our process uses bamboo from certified plantations, our manufacturing process achieves superior strength and resilience.
- Harvested from sustainably sourced bamboo plantations
- Resistant to rot, termites and weathering
- Recyclable at end-of-life, chipped and reused as organic soil mulch
- Carbon-efficient, lower emissions than timber, HDPE matting, or concrete alternatives
- Resistant to fire, does not burn.
With proper maintenance, the ECM-70 G delivers over 15 years of service, making it the ideal solution for companies seeking long-term, low-impact site access with verified ESG performance.
